On sweltering days, when you step into a drinks shop or supermarket for a freshly made beverage, you'll find those refreshing drinks contain ice cubes – that's tube ice. It is the tube ice machine that continuously produces this premium ice, delivering wave after wave of refreshing coolness to consumers.
Not only in bubble tea shops, but also in upmarket hotels and seafood markets, you'll find tube ice machines. The tube ice they produce boasts an attractive appearance and maintains the cool flavour of beverages for extended periods. When paired with a crusher, tube ice proves particularly effective for storing and preserving seafood, enhancing its freshness and visual appeal.
II. The Tube Ice Maker's ‘Ice-Making Secrets’: Unlocking the Creation of Hollow Ice in 4 Steps
Many wonder how tube ice makers produce this hollow ice. In truth, it relies on a meticulous ice-making process:
Water Injection and Cold Accumulation: The ice-making tube assembly is filled with an appropriate amount of water, while the refrigeration system commences operation, rapidly lowering the temperature of the tubes below freezing point.
Ice Layer Formation: Water on the outer surface of the tubes gradually crystallises into an ice layer under the influence of low temperatures, thickening progressively over time.
Ice Detachment: When the ice layer reaches the preset thickness, the refrigeration system ceases operation. Simultaneously, high-temperature, high-pressure gas is introduced into the tubes, causing the ice layer to separate from the inner walls.
Cutting and Collection: The detached tubular ice columns fall through the machine's internal cutting mechanism, where they are sliced into predefined lengths. Finally, they drop into the ice storage chamber, awaiting use.

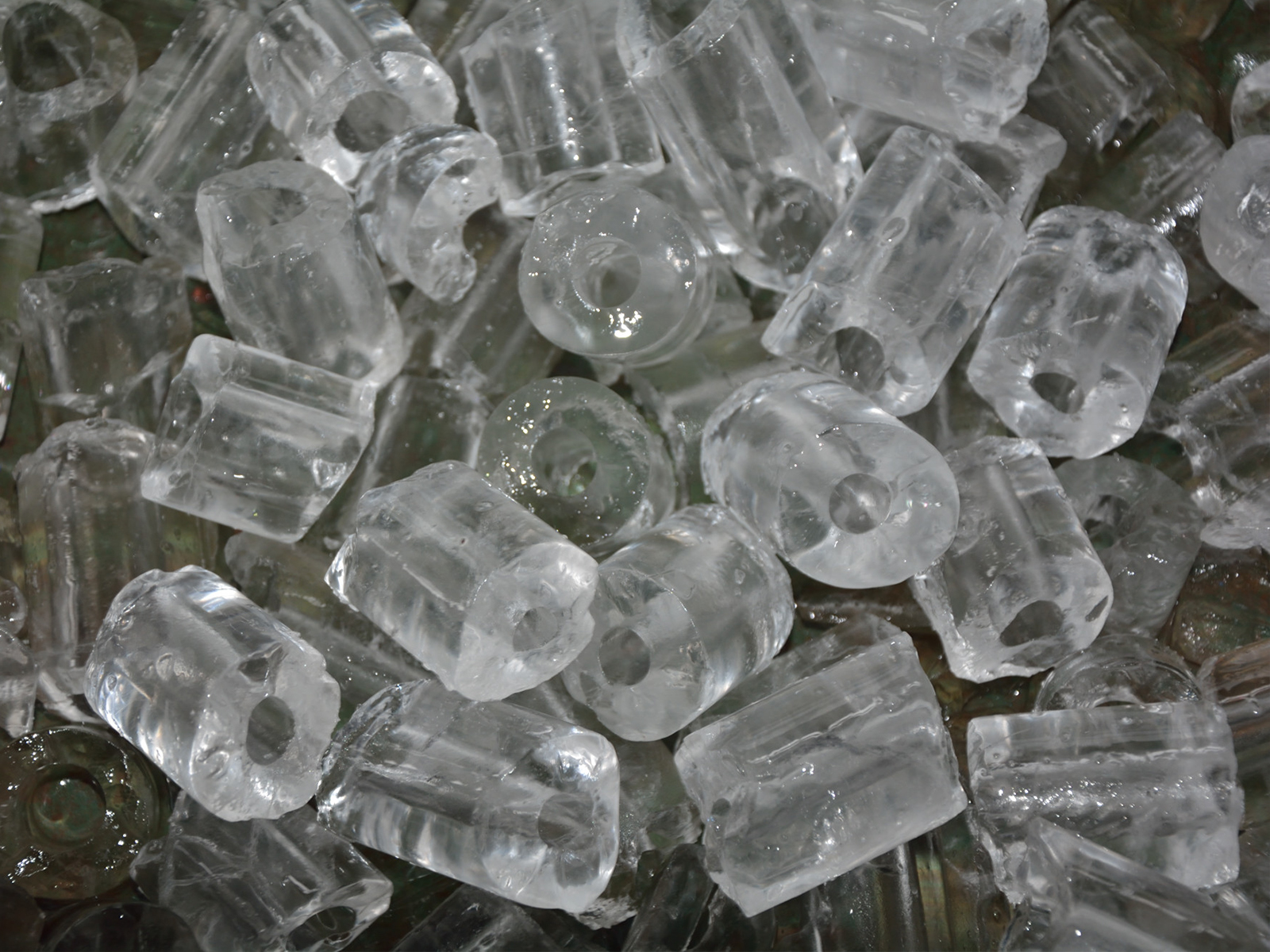

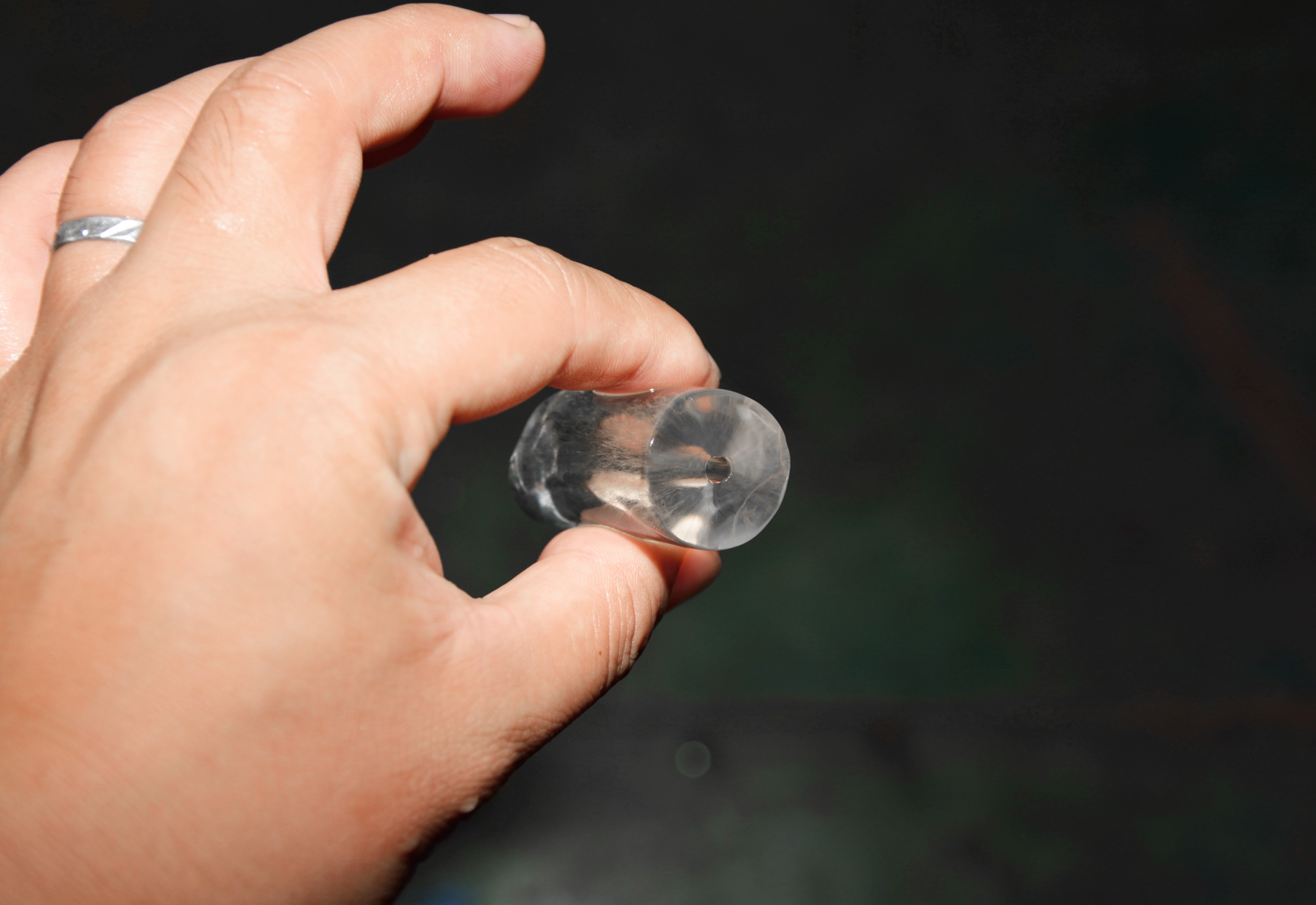

This unique ice-making method endows tubular ice with a hollow structure, granting it high heat exchange efficiency and moderate melting rates, enabling outstanding performance across diverse applications.
III. Beyond Beverages: Six “Cross-Industry Skills” of Tubular Ice Machines
The application scope of tubular ice machines extends far beyond the beverage industry, demonstrating exceptional performance in industrial production and other sectors:
Food Processing's ‘Freshness Assistant’: During meat and poultry processing, tube ice rapidly lowers ingredient temperatures, inhibiting bacterial growth and extending shelf life while preserving tender texture.
Pharmaceutical Industry's ‘Temperature Guardian’: Certain medications demand strict temperature control during production. Tube ice facilitates cooling in manufacturing facilities and regulates storage temperatures, safeguarding pharmaceutical quality.
Freshness Assurance in Fishing Operations: At sea, tube ice machines promptly produce substantial quantities to preserve freshly caught fish, preventing spoilage and ensuring produce remains pristine upon landing.
The Temperature Control Specialist in Concrete Engineering: During large-volume concrete pouring, incorporating tube ice effectively lowers the concrete's moulding temperature. This reduces cracking caused by thermal expansion and contraction, thereby enhancing the quality of concrete structures.
The Constant Temperature Tool in Laboratories: Certain scientific experiments demand precise control of environmental temperatures. Tube ice serves as an auxiliary cooling method, providing stable thermal conditions for experiments.
Atmosphere Enhancer in Entertainment Venues: In bars, KTVs, and similar establishments, tube ice serves not only for beverage preparation but also for decorative purposes—such as crafting ice sculptures or ice buckets—to cultivate a distinctive consumer ambiance.
IV. Selection + Maintenance Guide: Choosing the Right Tube Ice Machine for Peace of Mind and Cost Savings
(1) Three Strategies for Selecting the Suitable Tube Ice Machine to Avoid Pitfalls
Determine Production Requirements: Select based on daily ice consumption. For instance, small bubble tea shops with low daily usage may opt for models producing under 500kg per day. Large food processing plants or fisheries require tube ice machines capable of producing several tonnes daily, while also accounting for peak demand by reserving 10%-20% additional production capacity.
Focus on Core Components: The compressor is the ice tube machine's heart. Opt for stable, energy-efficient compressors from reputable brands. The material of the ice tubes is equally critical; prioritise corrosion-resistant stainless steel tubes with excellent thermal conductivity to ensure longevity and consistent ice quality.
Consider energy consumption and environmental impact: Opting for low-energy tube ice machines effectively reduces long-term operating costs. Simultaneously, verify compliance with environmental standards by selecting machines using eco-friendly refrigerants to minimise ecological footprint.
(2) Four Key Points for Daily Maintenance to Extend Tube Ice Machine Lifespan
Regularly clean the interior of the ice machine, including ice tubes and storage bins, to remove scale and grime, prevent bacterial growth, and ensure hygienic ice production.
Weekly inspection of the refrigeration system to check for refrigerant leaks and ensure proper operation.
Monthly inspection of the electrical system, including wiring and plugs, to ensure secure connections and prevent electrical leakage;
Quarterly maintenance of the compressor, including dust removal from its surface, operational status checks, and lubricant replenishment where necessary.
V. Future Prospects: The ‘Intelligent Upgrade Path’ for Tube Ice Machines
With continuous technological advancement, tube ice machines are evolving towards greater intelligence, efficiency, and environmental sustainability:
Intelligent Control: Future tube ice machines will feature enhanced smart capabilities, enabling remote monitoring, start/stop control, and fault alerts via mobile applications. Users can also view real-time operational status and production data for streamlined management;
Energy Efficiency: Advanced refrigeration technologies and energy-saving components will further reduce power consumption, enhance ice production efficiency, and minimise energy wastage;
Eco-Friendly Design: Development of more environmentally sound refrigerants and materials will lessen the environmental impact during production and operation, aligning with sustainable development principles.
Customised Solutions: Tailored tube ice machine designs will address specific industry and user requirements, such as marine-grade units engineered for waterproofing and shock resistance to withstand the harsh conditions of fishing vessels.
As you savour the cool comfort of iced milk tea on a summer's day, as supermarket seafood retains its freshly caught vitality, as the concrete structures of skyscrapers remain robust and enduring – behind all this lies the quiet operation of tube ice machines. They are not merely ice-making equipment, but versatile ice-world multitaskers linking everyday convenience with industrial advancement. Empowered by intelligent and green technologies, future tube ice machines will adapt with greater flexibility and efficiency, expanding into more scenarios to continuously inject a ‘cooling force’ into both our daily lives and industrial operations.
