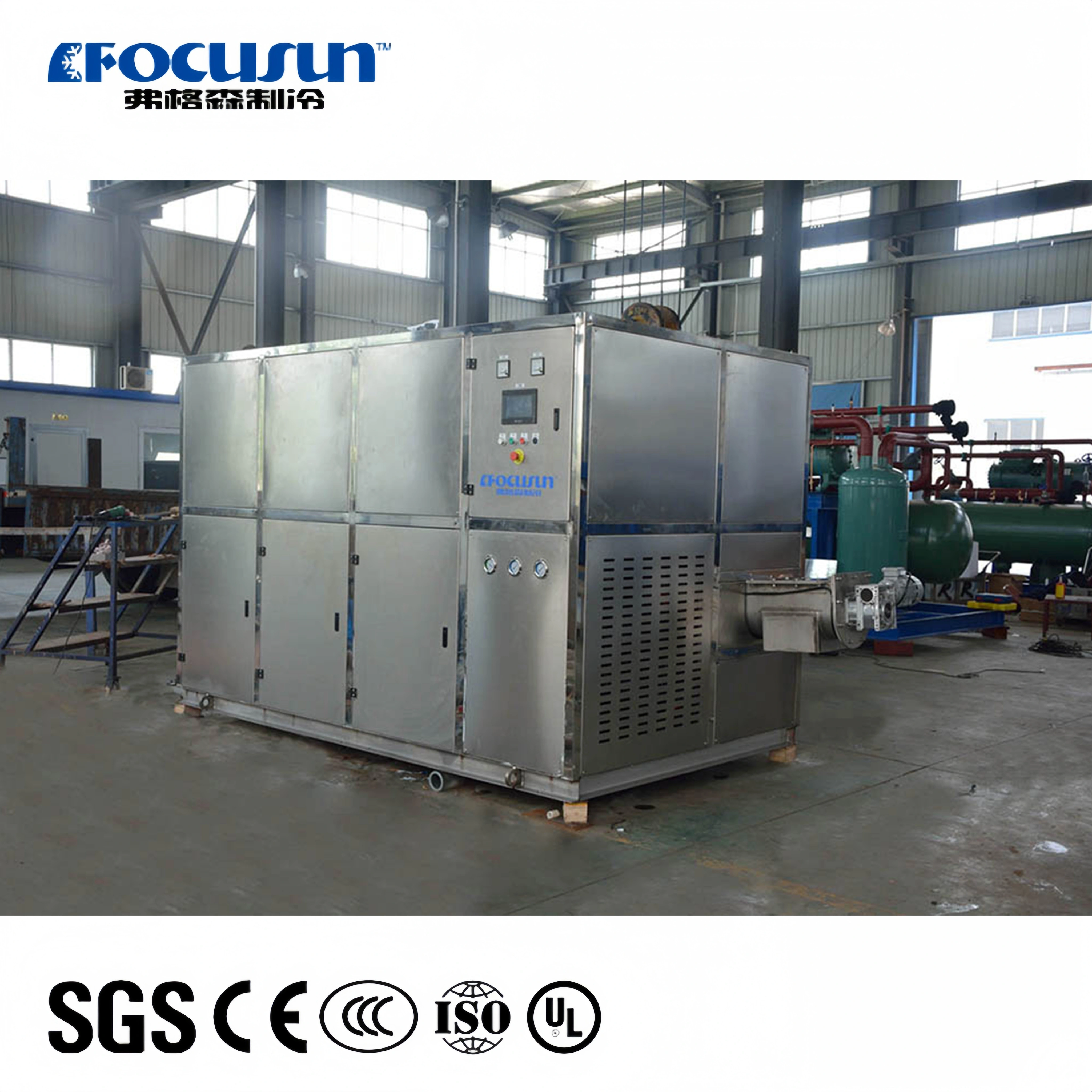

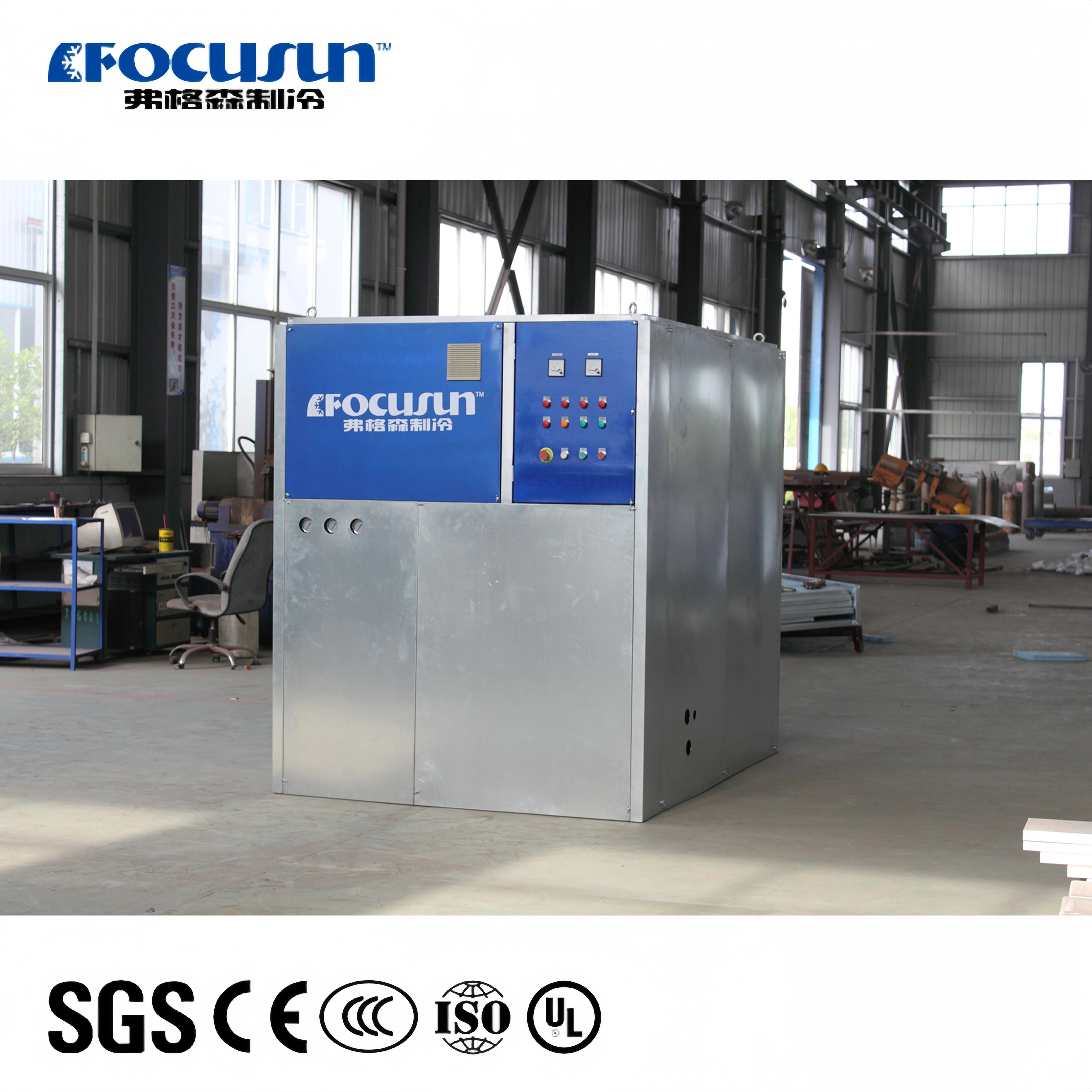

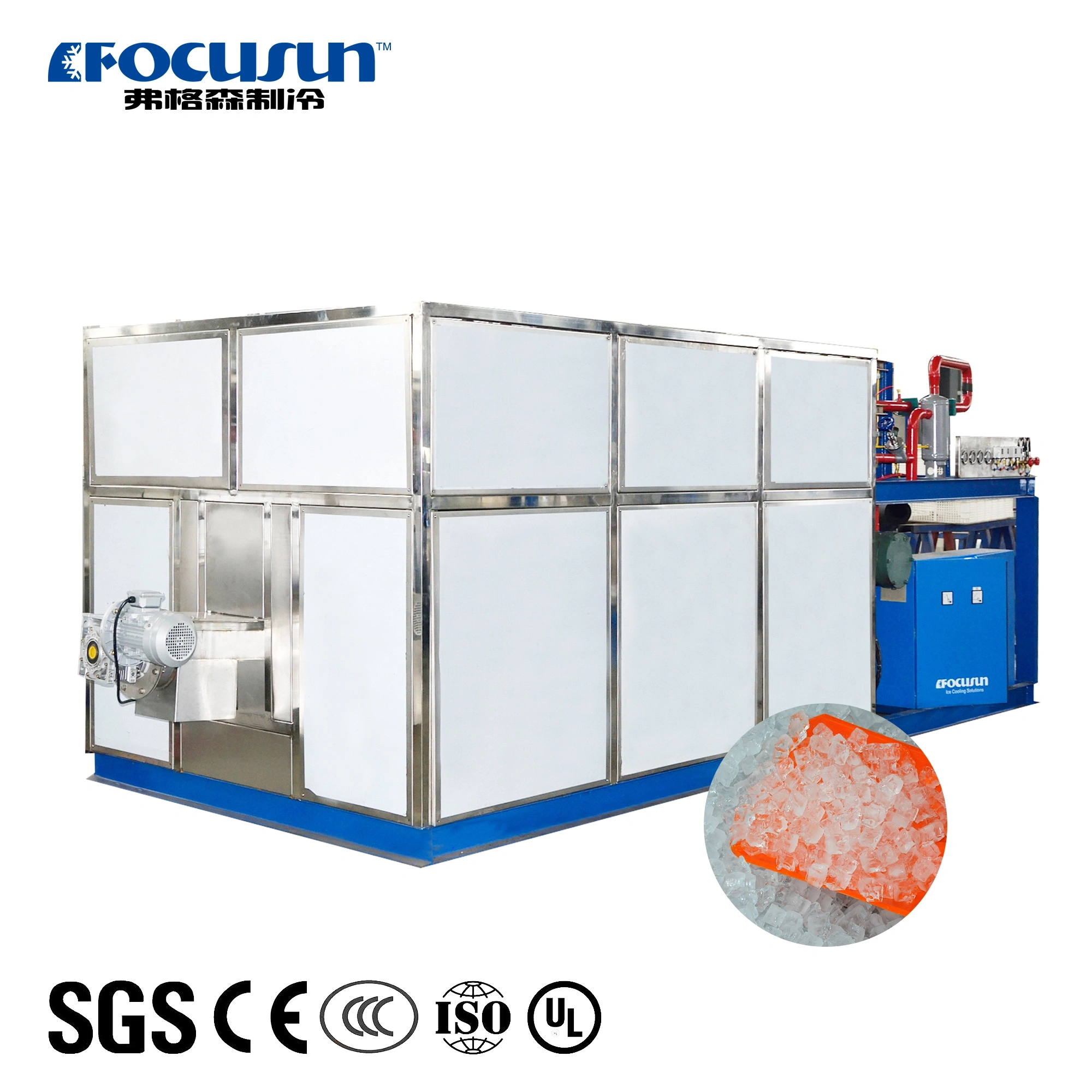

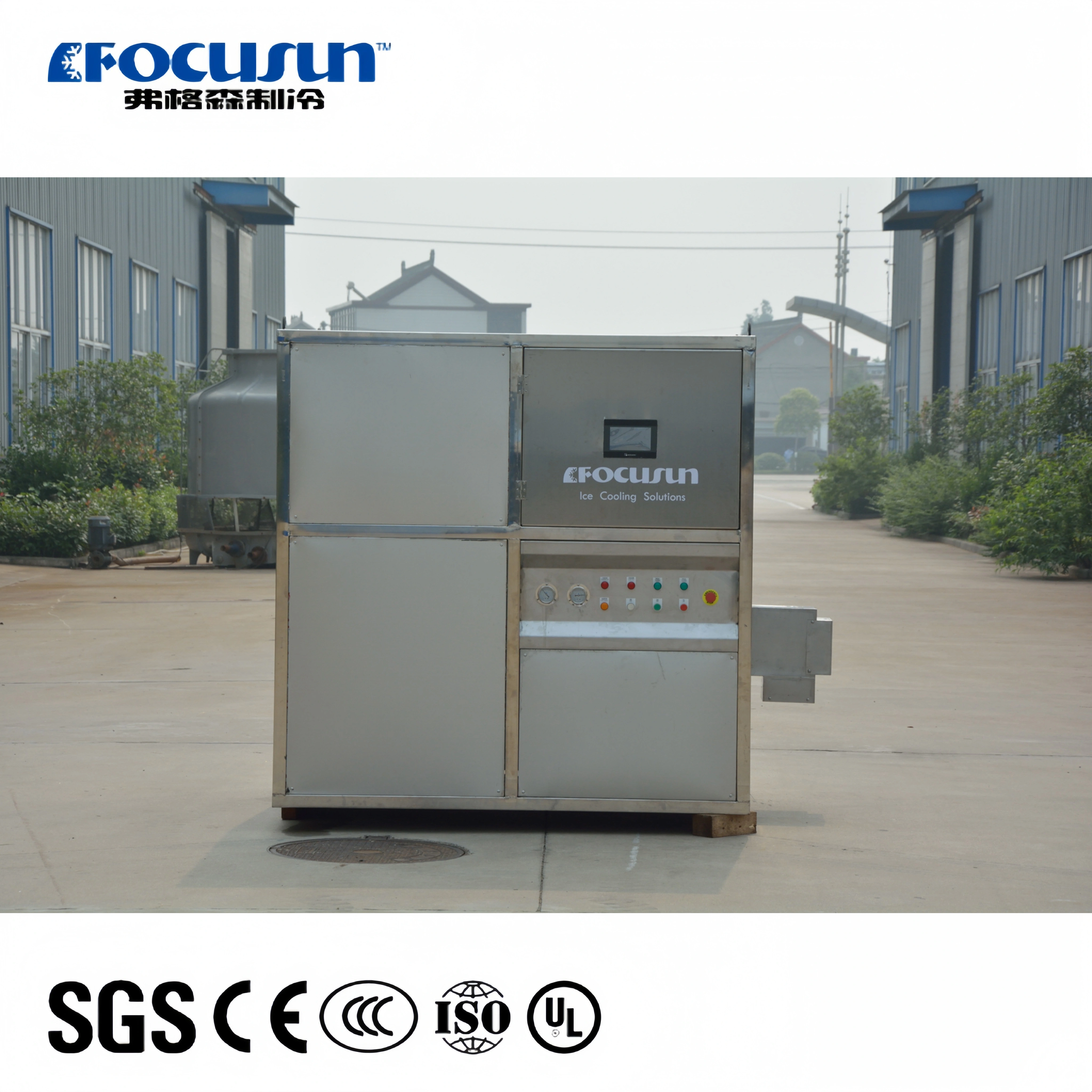

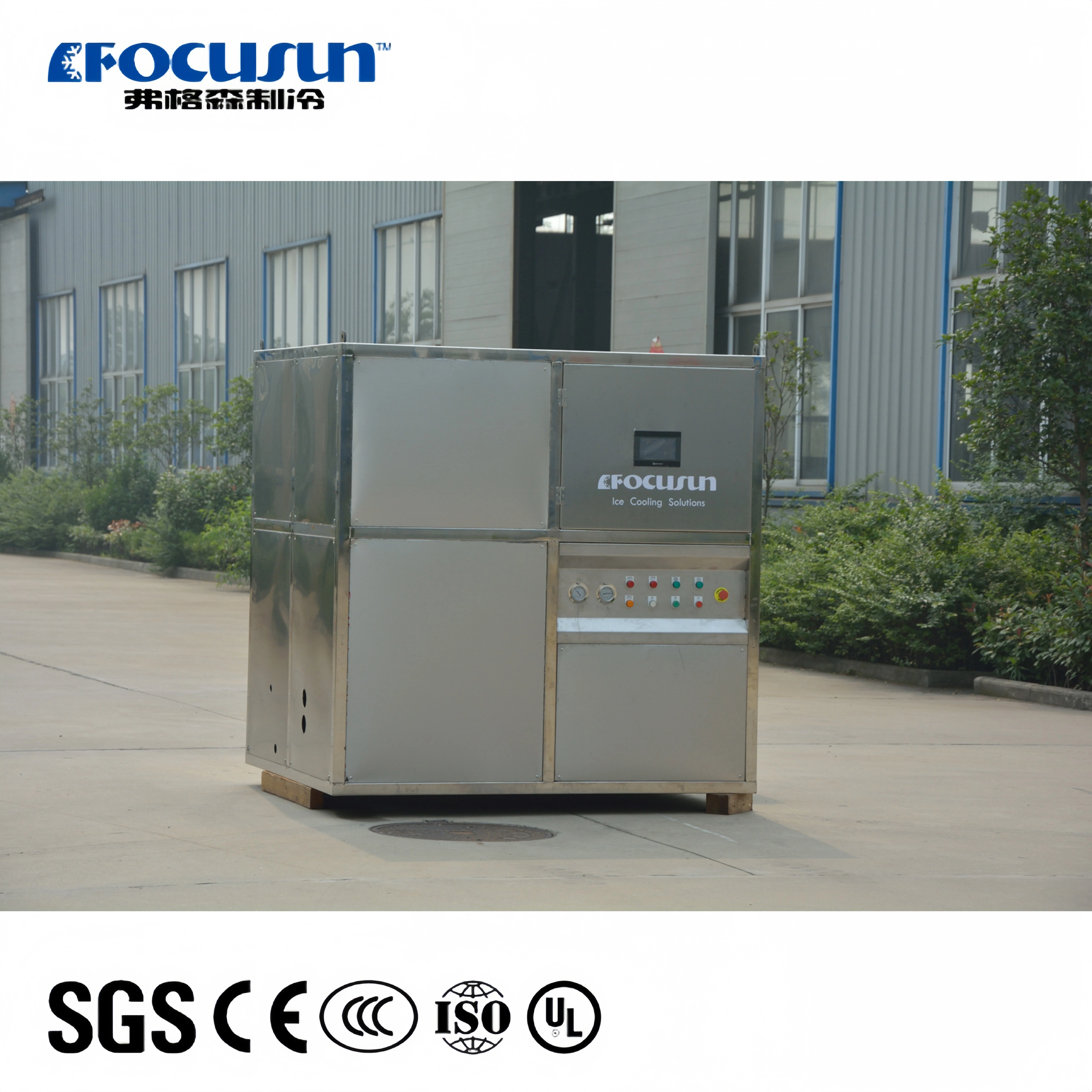

The Focusun Large Capacity Cube Ice Machine adopts advanced ice-making technology and can efficiently produce 22mm hard granular ice. It features a large cold storage capacity and slow melting. This equipment is suitable for industries such as distant-water fishing, fresh food supermarkets, and concrete cooling. The daily ice output of a single unit can reach 1 to 20 tons. Its modular structure design is convenient for maintenance and is particularly suitable for large-scale ice usage scenarios.
The Large Capacity Cube Ice Machine is designed to produce high volumes of uniform, clear cube ice efficiently and reliably. Engineered for commercial and industrial use, it supports continuous operation to meet the demanding ice requirements of hotels, restaurants, supermarkets, and food processing facilities.
Equipped with high-performance compressors and precision water filtration, the machine ensures crystal-clear ice cubes with excellent hardness and slow melting properties. Its automated control system monitors ice production and maintains optimal conditions, reducing energy consumption while maximizing output.
Key Features:
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 20000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 68.5 |
| Installment power | Kw | 85 | |
| Operating power of cutter | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 2.2 | |
| Fan motor of cooling tower | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 3.7 | |
| Manufacturer | Bitzer | ||
| Refrigeration capacity | Kw | 148.6 | |
| Operating power | Kw | 59.6 | |
| Compressor | Compressor COP/EER | Kw/kw | 2.5 |
| Horse power | Hp | 50×2 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (LxWxH)(mm) | Unit:2200x2000x1800 Evaporator:1350x1350x4600 |
| Size of cooling tower | (O.D.xH)(mm) | Φ2175x2565 | |
| Size of liquid pipe of cooling tower | 3/4" | ||
| Size of cooling water pipe | 2-1/2" | ||
| Size of water inlet pipe of ice maker | 1" | ||
| Size of ice outlet | mm | 400x300 | |
| Weight of unit | Operating weight of cube ice maker | Kg | Unit:2260 Evaporator:3650 |
| Operating weight of cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1.5 | |
