Ideal for seafood markets, food processing, and catering services, plate ice machines produce clean, uniform ice sheets that are perfect for preserving perishable goods. They operate efficiently with automated ice production and easy maintenance, making them a reliable solution for businesses requiring large quantities of ice.

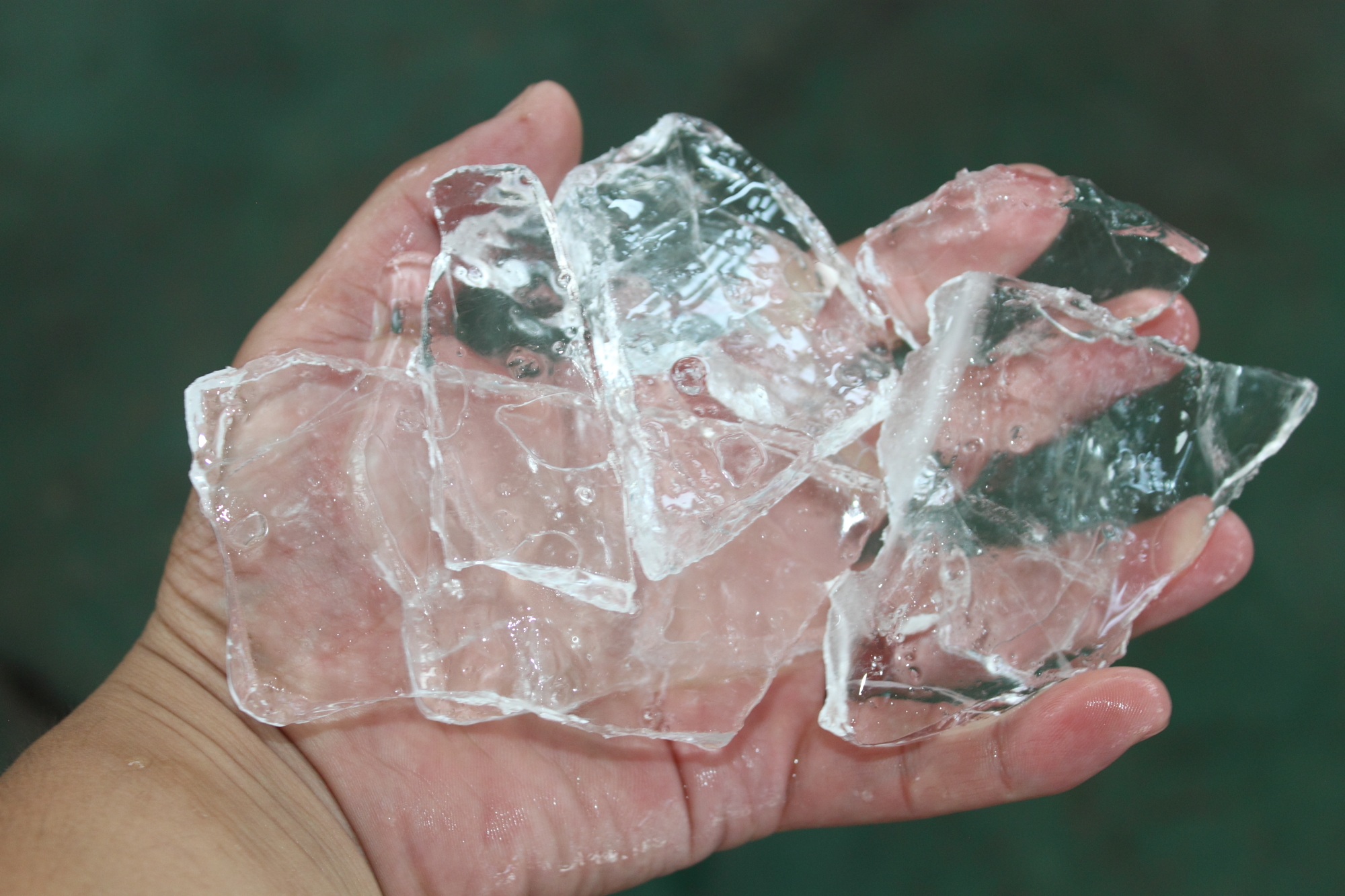

Plate ice machines are highly efficient and versatile, making them a perfect solution for the food industry. These machines produce ice sheets that can be broken into smaller pieces for easy application in food processing and preservation. Plate ice provides excellent coverage for cooling and preserving perishable products such as fish, meat, and vegetables, helping to extend their shelf life and maintain freshness during transportation or storage.
The plate is is designed to form ice quickly, allowing for high-volume production with minimal space requirements. With an automated system that handles ice-making, water filling, and harvesting, these machines are incredibly user-friendly. Plate ice machines are also energy-efficient, making them a cost-effective choice for large-scale food businesses that require consistent ice production.
Key Advantages：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 20000 | |
| Cooling way | Water Cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 2.25 |
| Warm water pump | Kw | 0.75 | |
| lce cutter | Kw | 2.2 | |
| Cooling tower fan | Kw | 2.2 | |
| Cooling water pump | Kw | 5.5 | |
| Total running power | Kw | 84 | |
| Installment power | Kw | 100 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 146.4 | |
| Operating power | Kw | 71.1 | |
| Compressor COP/EER | Kw/Kw | 2.06 | |
| Horse power | Hp | 40x3sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | L×W×H(mm) | 2450x1600x1800 |
| Number of evaporator | 1PC | ||
| Size of evaporator | L×W×H(mm) | 3800x2200x2450 | |
| Size of ice outlet | L×W(mm) | 1500x300 | |
| Size of cooling tower | O.D.×H(mm) | C2650×2565 | |
| Size of water feeding pipe of cooling tower | 1" | ||
| Size of cooling water pipes | 4" | ||
| Size of water feeding pipe | 1" | ||
| Operating weight | Unit | Kg | 2150 |
| Evaporator | Kg | 2680 | |
| Cooling tower | Kg | 1300 | |
| Water supply pressure requirement | Bar | 1 | |
