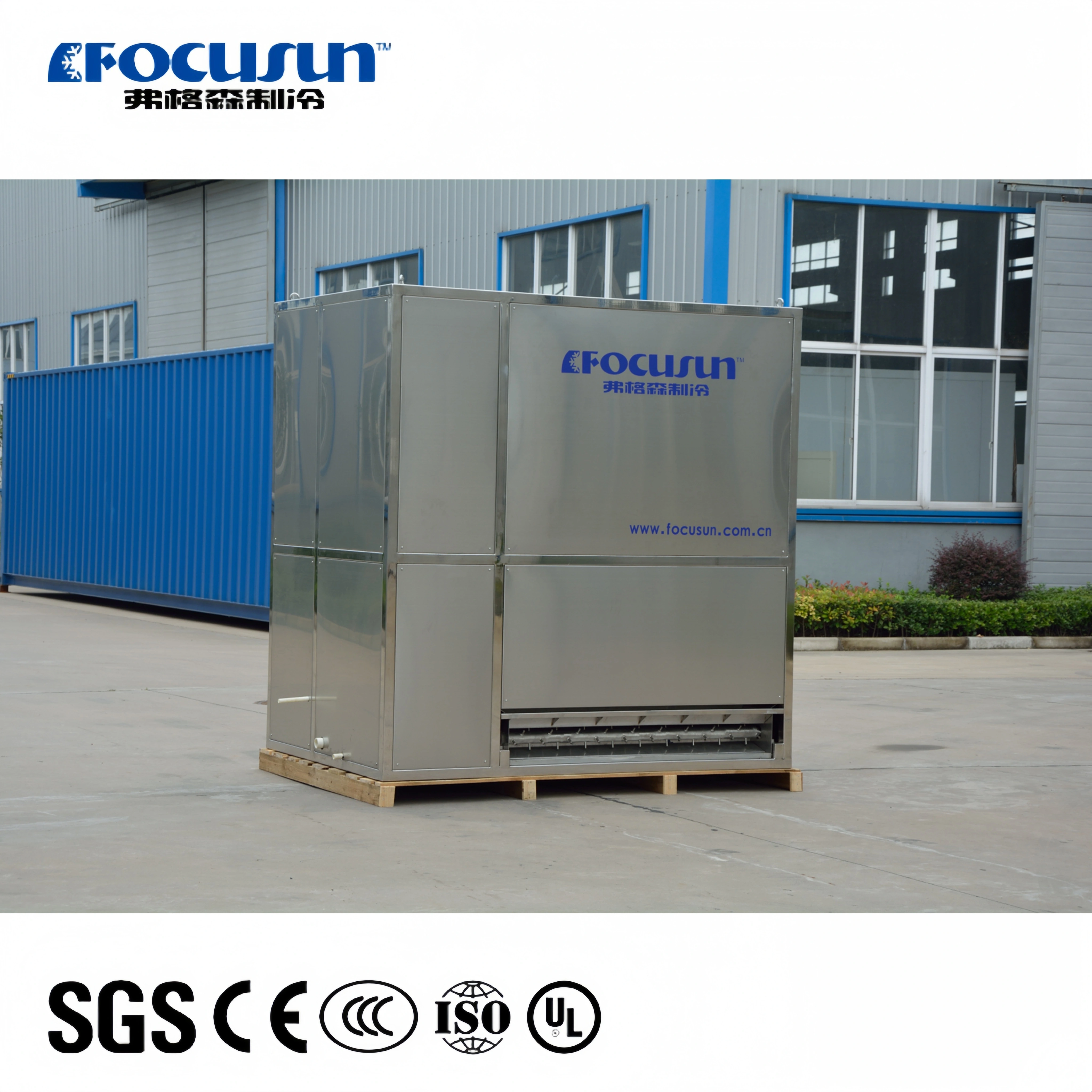

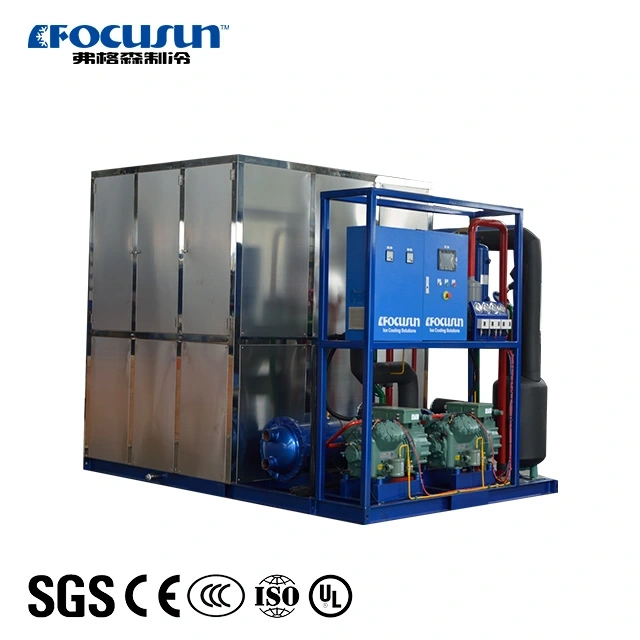

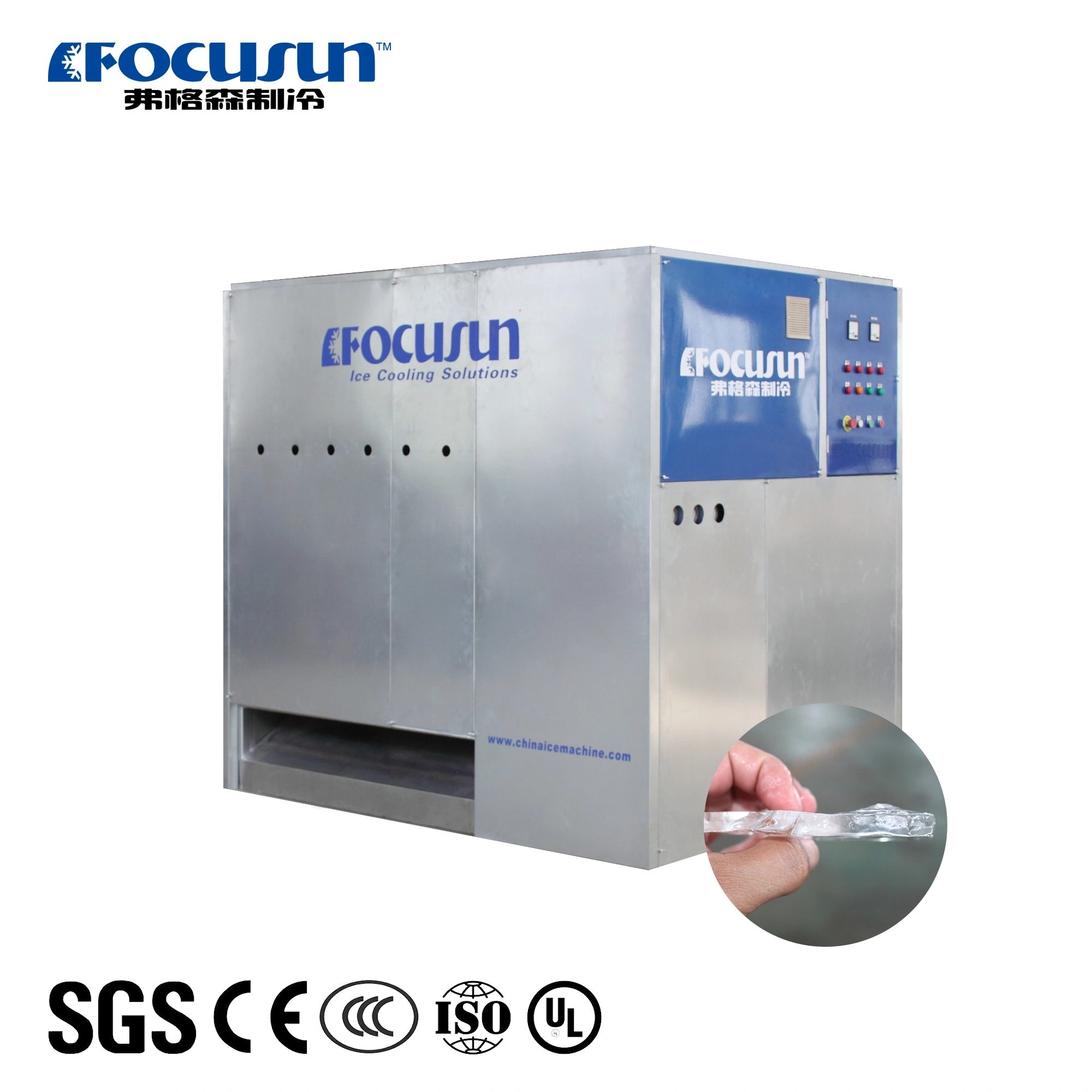

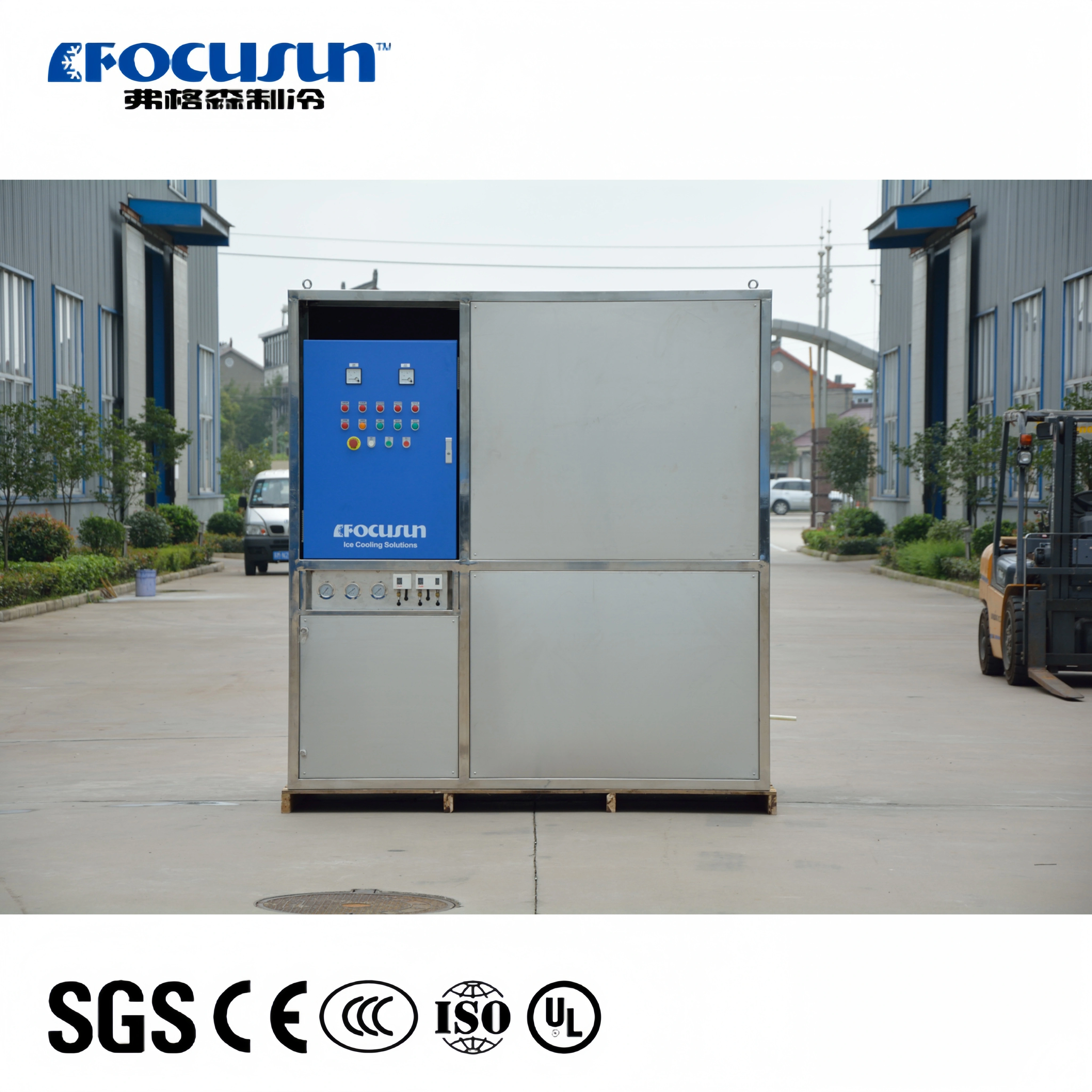

Plate ice machines are an economical choice for businesses looking to produce ice at low operating costs. These machines utilize advanced refrigeration technology to generate large quantities of ice with minimal energy consumption, providing a cost-effective solution for high-volume ice production.
Plate ice machines are known for their high energy efficiency and reliability. Using an evaporator system, these machines freeze water into thin sheets of ice, which are then harvested for use in various industries. The energy-efficient design reduces electricity consumption, making them an ideal choice for businesses looking to lower their operating costs while maintaining a steady supply of ice.
The automated systems in plate ice machines streamline the ice-making process, ensuring minimal labor requirements. With their durable, high-quality components and reliable performance, these machines offer long-term cost savings. Whether you are running a small café or a large industrial operation, plate ice machines provide an affordable and efficient ice solution.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 5000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Operating power of cutter | Kw | 0.75 |
| Operating power of cold water pump | Kw | 0.75 | |
| Warm water pump | Kw | 0.55 | |
| Total running power | Kw | 25.15 | |
| Installment power | Kw | 30 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 37.1 | |
| Operating power | Kw | 20.9 | |
| Compressor COP/EER | Kw/kw | 1.78 | |
| Horse power | Hp | 30 | |
| Condenser | Fan power | Kw | 2.2 |
| Cooling way | Air cooling | ||
| Installment | Externally installed | ||
| Dimension | Size of ice maker | L×W×H(mm) | 2000x1800x2200 |
| Size of condenser | L×W×H(mm) | 2280x1200x1450 | |
| Size of water feeding pipe | 1/2" | ||
| Operating weight | Operating weight of plate ice maker | Kg | 1550 |
| Operating weight of condenser | Kg | 168 | |
| Water supply pressure requirement | Bar | 1 | |
