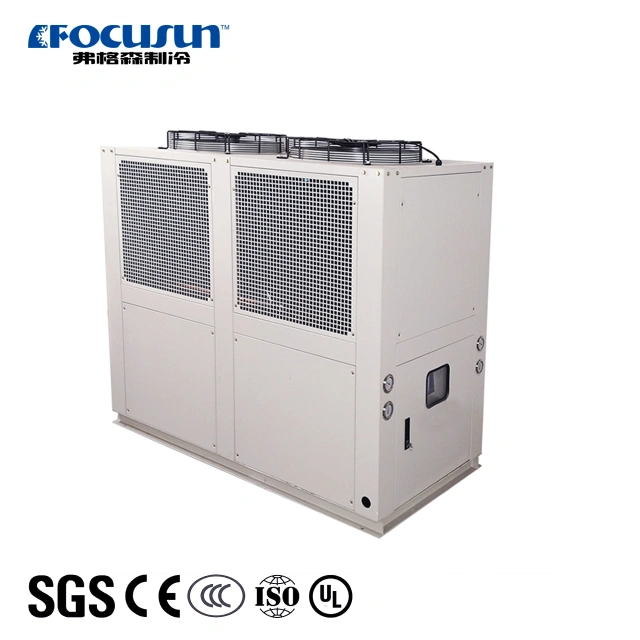

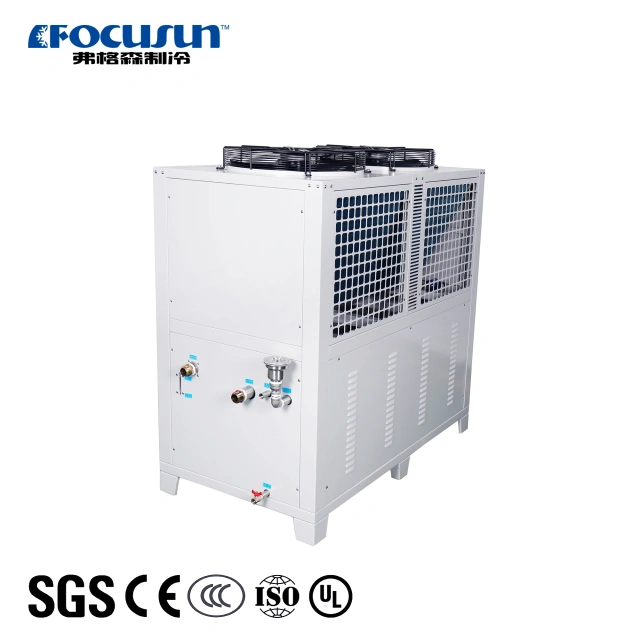

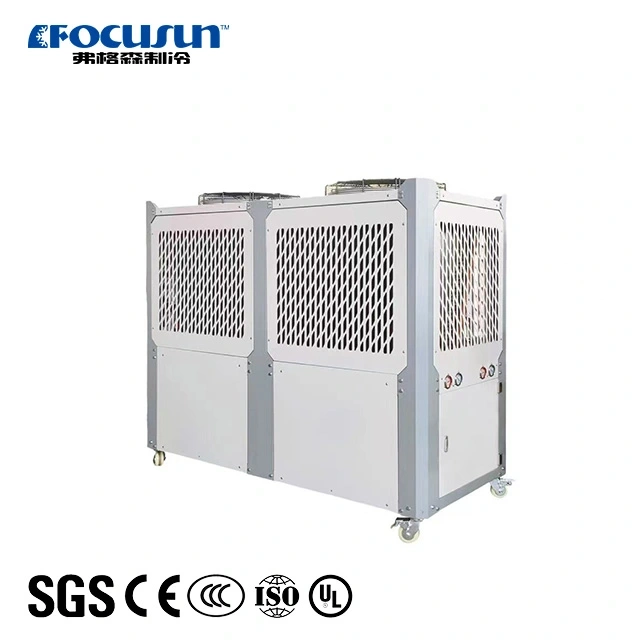

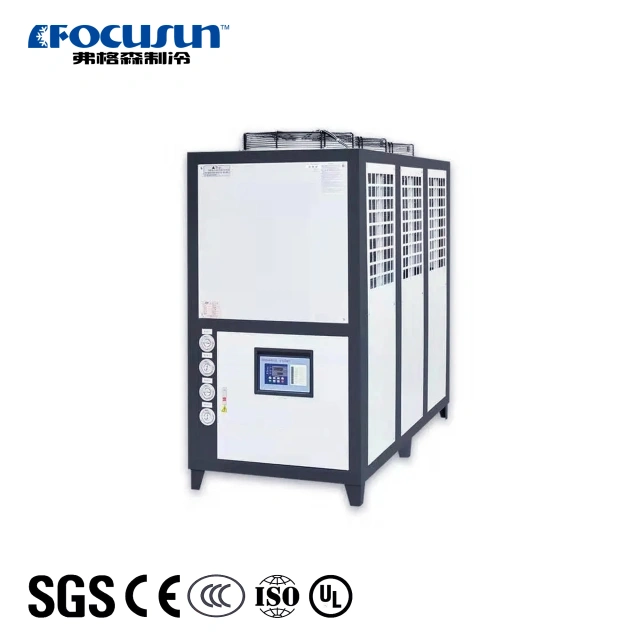

Focusun Air Cooled Chiller dissipates heat from the condenser using air blown over it by fans, eliminating the need for a cooling tower. It features a compact design and is easy to install, making it ideal for areas with limited water resources or where cooling towers are not feasible.

Description

The FOCUSUN air-cooled chiller—also known as a box-type air-cooled industrial chiller—features a highly efficient air-cooled heat dissipation design. It uses built-in fans to draw in ambient air and expel heat through a condenser, effectively lowering the system’s temperature. This design eliminates the need for an external water cooling system, making it easy to install, operate, and maintain.

Ideal for environments where space is limited or water resources are insufficient, air-cooled chillers provide reliable cooling without complex infrastructure. However, since their performance is influenced by ambient temperature and humidity, they are best suited for applications with moderate cooling demands.

Each FOCUSUN air-cooled chiller is equipped with a full suite of safety features, including:

Motor overload protection
Phase loss and phase reversal alarms
Anti-freeze thermostat
Pressure gauges and temperature control systems

Thanks to durable components and intelligent system design, these units offer stable performance and extended service life. The system operates based on core heat exchange principles, ensuring precise temperature control within a range of 3°C to 50°C, making it an ideal solution for industries that require accurate chilled water management.

Working Principle
When the air-cooled chiller is activated, the refrigerant absorbs heat from the target medium inside the evaporator, causing it to vaporize. The vapor is then drawn in by the compressor and compressed into high-temperature, high-pressure gas.

This gas is passed through the air-cooled condenser, where it releases heat to the surrounding air and condenses into a liquid. The liquid refrigerant is then depressurized via an expansion valve and sent back to the evaporator, where it vaporizes again by absorbing heat. This closed-loop cycle continues until the circulating water reaches the desired chilled temperature.

Model		FWC-03A	FWC-05A	FWC-06A	FWC-08A	FWC-10A	FWC-12A	FWC-15A	FWC-20A	FWC-25A	FWC-30A	FWC-40A	FWC-50A
Cooling Capacity	Kcal/h	7740	12900	15480	20640	25800	30960	38700	51600	64500	77400	103200	129000
Cooling Capacity	KW	9	15	18	24	30	36	45	60	75	90	120	150
nput Power	KW	3.26	5.29	5.95	8.05	9.85	12.72	15.9	21.56	24.36	31	42.4	49.5
Power		3PH 380V 50HZ(200V/220V/415V 50HZ/60HZ)
Refrigerant	Type	R22(R134a/407c/404a/410a)
Refrigerant	Control Mode	Inner thermal expansion valve						Outside the balanced thermal expansion valve
Compressor	Type	Hermetic scroll type (Piston)
Compressor	Power (Kw)	2.25	3.75	4.5	6	7.5	9	11.25	15	18.75	22.5	30	37.5
Condenser	Type	Efficient copper tube set of aluminum finned+Low noise external rotor fan
Condenser	Cooling Air Flow(m3/h)	3000	5000	6000	8000	10000	12000	15000	20000	25000	30000	40000	50000
Evaporator	Type	Stainless steel water tank+shell and tube evaporator (or tank coil or plate type)
	Frozen Water Flow (m3/h)	1.58	2.58	3	4.1	5.2	5.85	8.25	10.3	11.69	15.65	20.6	25.5
	Frozen Water Flow (m3/h)	1.86	3.08	3.7	4.9	6.2	6.9	9.37	12.11	13.79	18.9	24.8	30.5
	Water Tank(L)	65	80	80	150	150	190	190	290	340	480	520	650
	Pipe Diameter (inch)	1"	1"	1"	1"	1-1/2"	2"	2"	2-1/2"	2-1/2"	2-1/2"	3"	3"
Pump	Power (KW)	0.37	0.75	0.75	0.75	0.75	1.5	1.5	2.25	2.25	3.75	3.75	5.5
Safety Protection		compressor overheating protection/over-current protection/phase detection/pressure detection/temperature anomaly/power short circuitoverload protection
Size	Length (mm)	1050	1400	1400	1400	1400	1650	1650	1700	1800	2400	2600	3000
	Width (mm)	560	690	650	690	690	1100	1100	1100	1100	1200	1200	1200
	Height (mm)	1100	1200	1200	1270	1270	1400	1400	1400	1400	2200	2200	2200
Weight	Kg	130	150	160	320	400	560	600	730	850	980	1260	1420
Measures Exchange		1KW=860kcal/h 1RT=3.024kcal/h 10000Btu/h=2520kcal/h

Product Details

Application

Chillers are widely used in industrial and commercial fields such as plastic processing, food cooling, medical equipment, and chemical production, providing stable and reliable cooling and temperature control.
