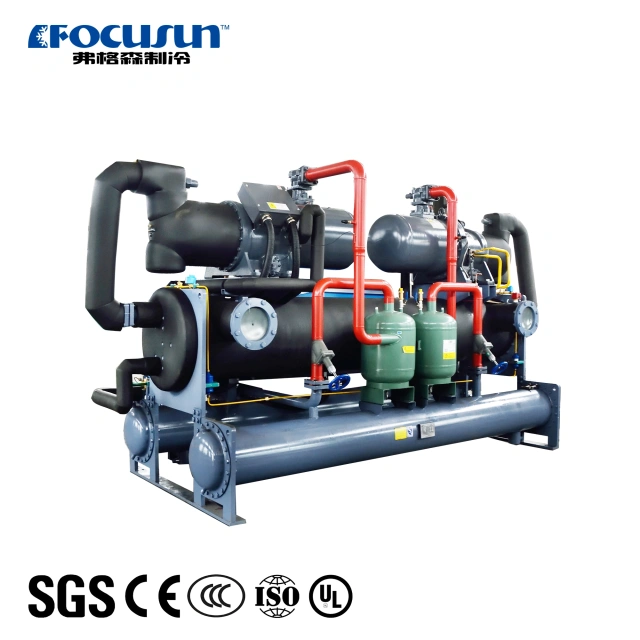

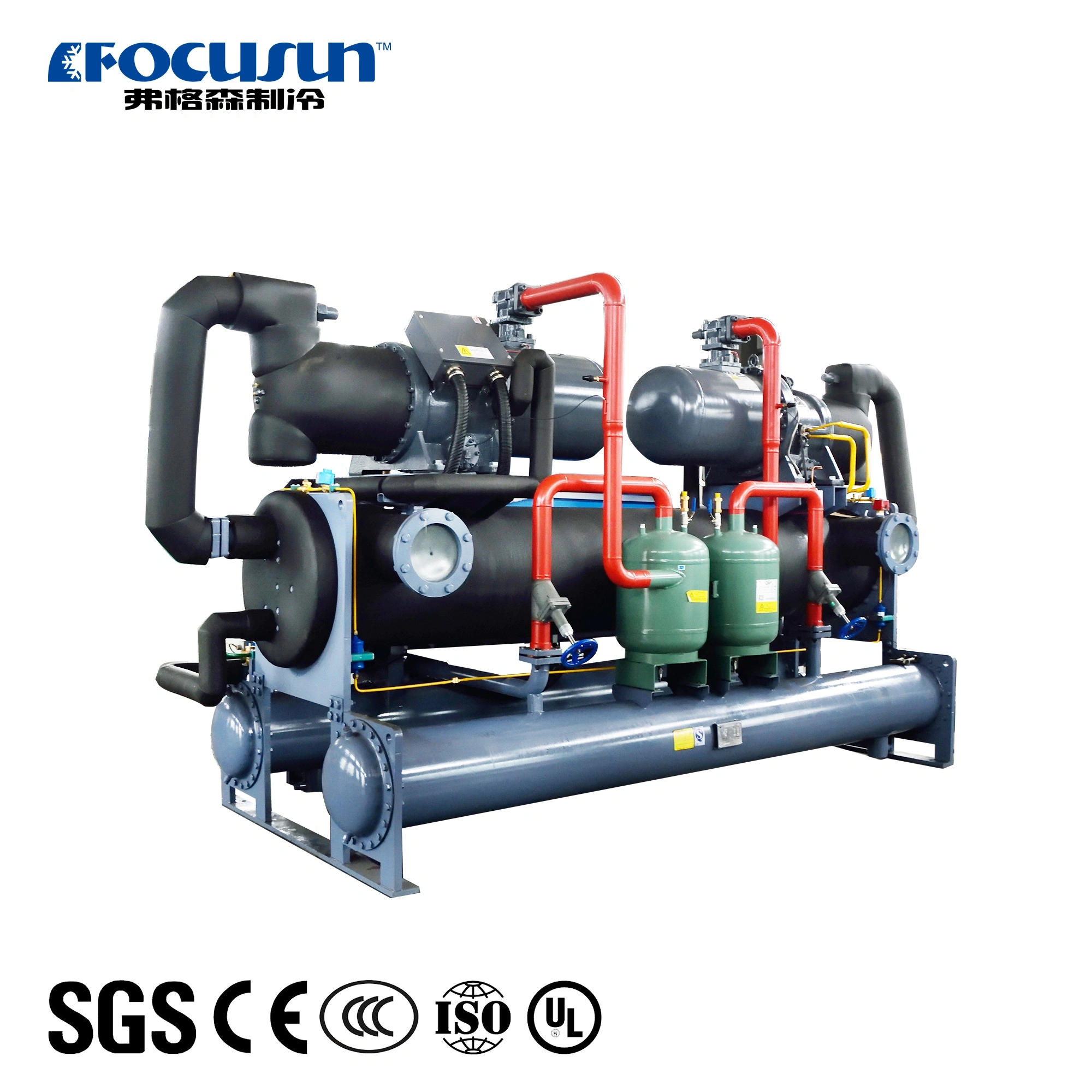

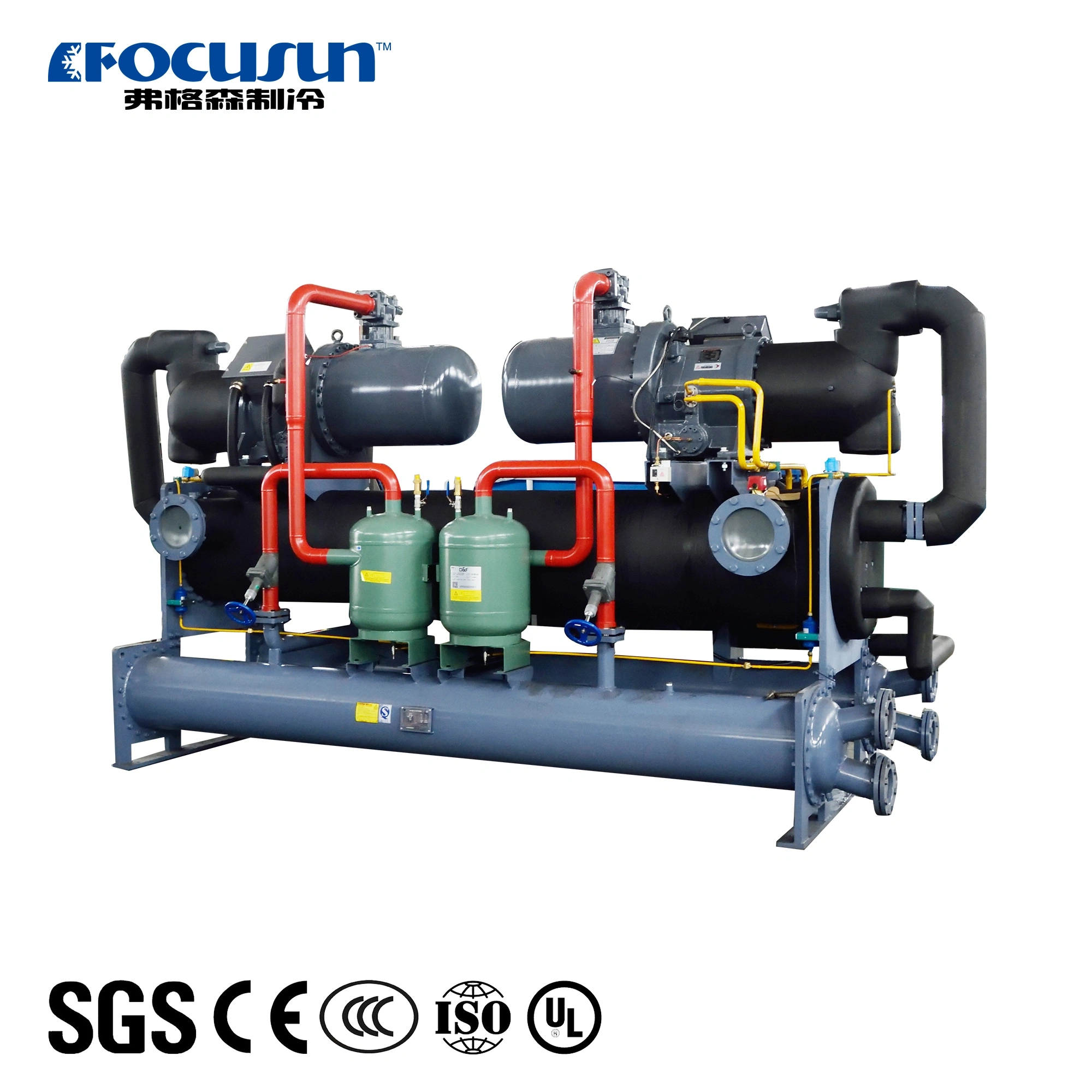

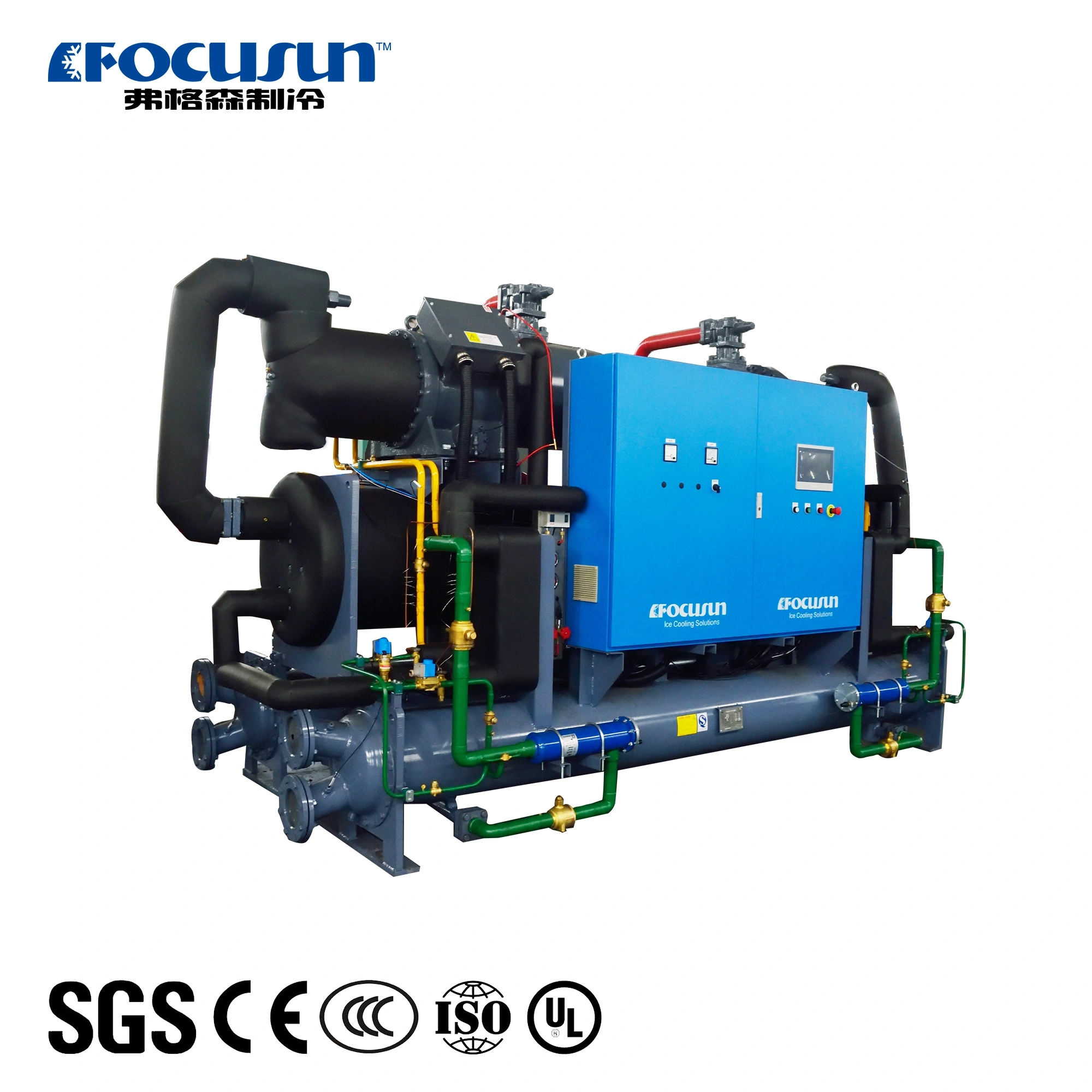

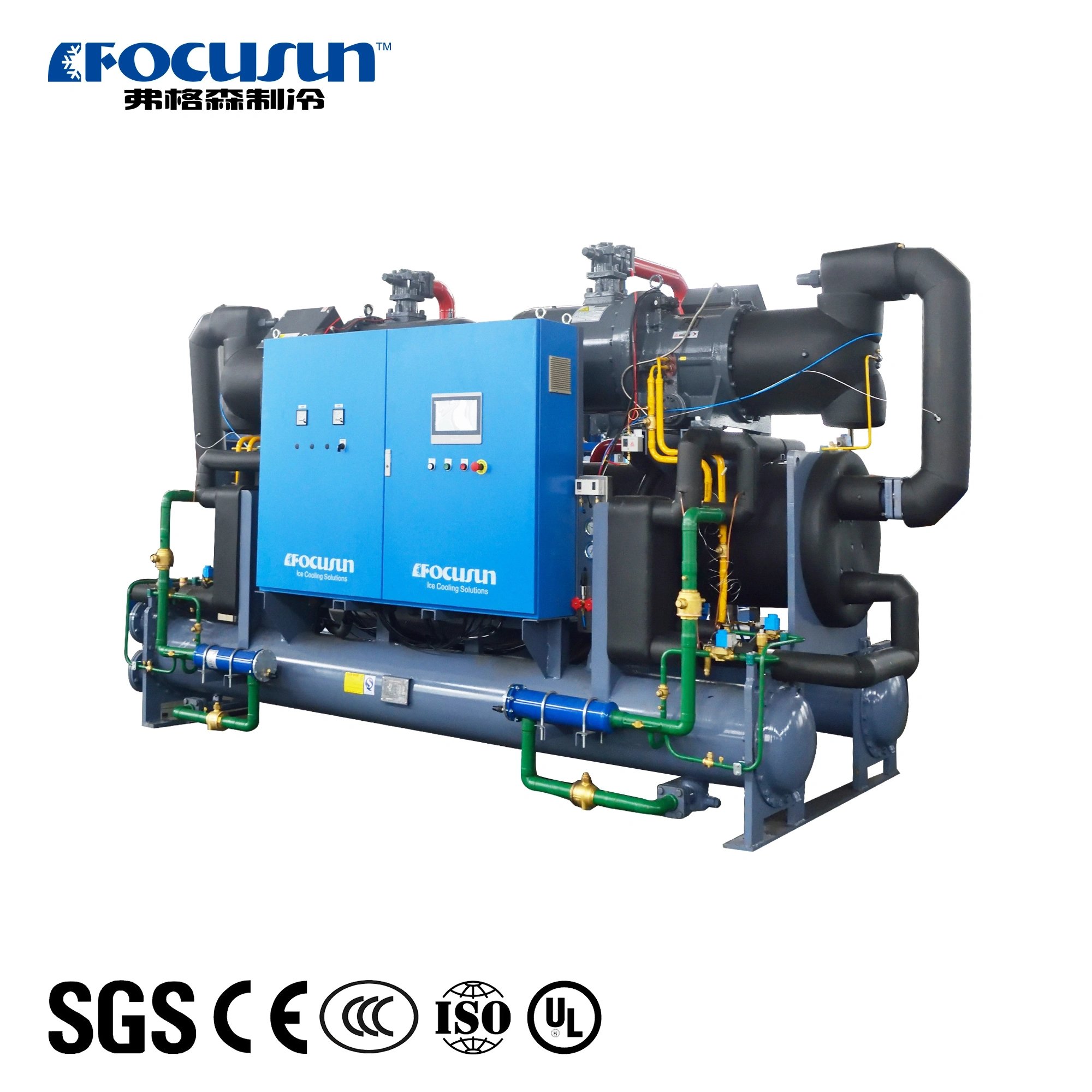

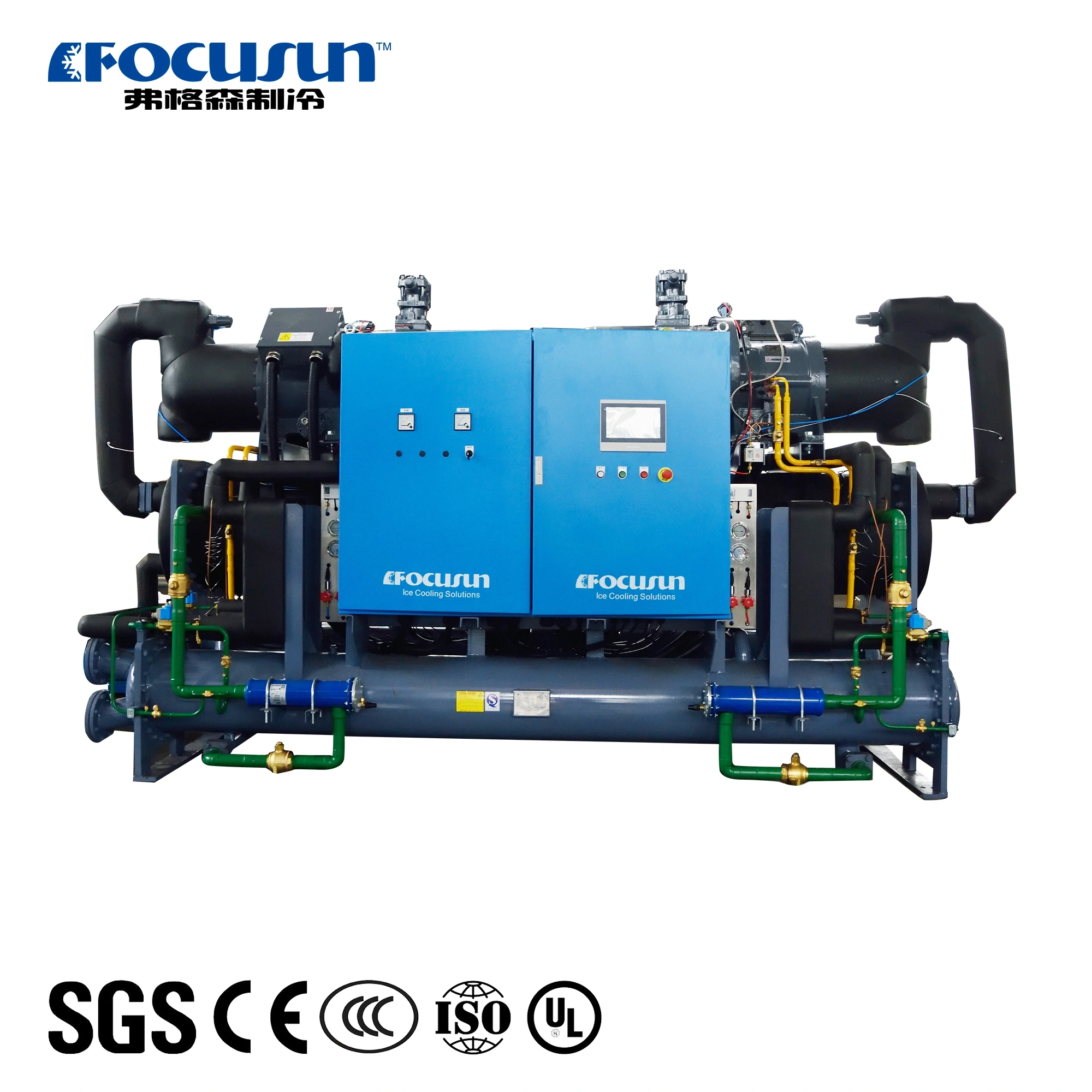

Focusun Screw Type Chiller uses a screw compressor as its core, providing higher cooling capacity and excellent stability. Available in both air-cooled and water-cooled configurations, it is perfect for demanding applications requiring large-scale, long-term operation such as cold storage, snow parks, chemical processing, and pharmaceuticals.
These chiller units deliver outstanding performance and extended service life. During operation, they follow a consistent cycle based on the core principles of heat exchange. They are particularly well-suited for industries requiring accurate and stable control of chilled water temperatures, with precise regulation capabilities ranging from 3°C to 50°C. This makes them an essential component in modern industrial cooling systems.
Working Principle
When the air-cooled chiller is activated, the refrigerant absorbs heat from the target medium inside the evaporator and begins to evaporate. The compressor then continuously draws in the resulting vapor and compresses it into high-temperature, high-pressure gas.
This gas flows into the air-cooled condenser, where it releases heat to the surrounding air and condenses back into a liquid. The liquid refrigerant is then passed through an expansion valve, reducing its pressure and temperature before re-entering the evaporator. There, it absorbs heat once again, repeating the cycle until the process water reaches the desired temperature.
| Model | FWC-40AS | FWC-50AS | FWC-60AS | FWC-70AS | FWC-80AS | FWC-90AS | FWC-100AS | FWC-120AS | FWC-150AS | FWC-160AS | FWC-180AS | FWC-240AS | ||||||||
| Cooling Capacity | Kcal/h | 99760 | 124700 | 149640 | 174580 | 206400 | 224460 | 249400 | 299280 | 374100 | 399040 | 448920 | 498800 | |||||||
| KW | 116 | 145 | 174 | 203 | 240 | 261 | 290 | 348 | 435 | 464 | 522 | 580 | ||||||||
| Input Power | KW | 33.3 | 40.8 | 49.8 | 57.6 | 73.5 | 74 | 83 | 99 | 124 | 131 | 150 | 167 | |||||||
| Power | 3PH 380V 50HZ(200V/220V/415V 50HZ/60HZ) | |||||||||||||||||||
| Refrigerant | Type | R22(R134a/407c/404a/410a) | ||||||||||||||||||
| Control Mode | Outside the balanced thermal expansion valve | |||||||||||||||||||
Compressor |
Type | Semi-hermetic screw | ||||||||||||||||||
| Start Mode | Y-△ | |||||||||||||||||||
| Energy Control(%) | 0-25-50-75-100 | |||||||||||||||||||
| Power (KW) | 30 | 37.5 | 45 | 52.5 | 60 | 67.5 | 75 | 90 | 112 | 120 | 135 | 150 | ||||||||
| Condenser | Type | Efficient copper tube set of aluminum finned +Low noise external rotor fan | ||||||||||||||||||
| Fan | Motor (KW) | 0.55*6 | 0.55*6 | 0.8*6 | 0.85*6 | 0.8*8 | 0.85*8 | 0.8*10 | 0.8*12 | 0.85*14 | 0.85*14 | 1.1*14 | 1.1*16 | |||||||
| Cooling Air Flow(m3/h) |
40000 | 50000 | 60000 | 70000 | 80000 | 90000 | 100000 | 120000 | 150000 | 160000 | 180000 | 200000 | ||||||||
| Evaporator | Type | shell and tube | ||||||||||||||||||
| Frozen Water Flow (m3/h) |
24 | 30 | 36 | 42 | 48 | 54 | 60 | 72 | 90 | 96 | 108 | 120 | ||||||||
| Pipe Diameter (inch) |
2-1/2" | 3" | 3" | 3" | 4" | 4" | 4" | 5" | 5" | 5" | 5" | 5" | ||||||||
| Safety Protection | Compressor overheating protection/over-current protection/phase detection/pressure detection/temperature anomaly/power short circuitloverload protecion | |||||||||||||||||||
| Weight | Kg | 1100 | 1250 | 1300 | 1350 | 1400 | 1500 | 1550 | 1600 | 1800 | 1900 | 2000 | 2100 | |||||||
| Measures Exchange | 1Kv=860kcal/h 1RT=3.516KW 10000Btu/h=2520kcal/h | |||||||||||||||||||
